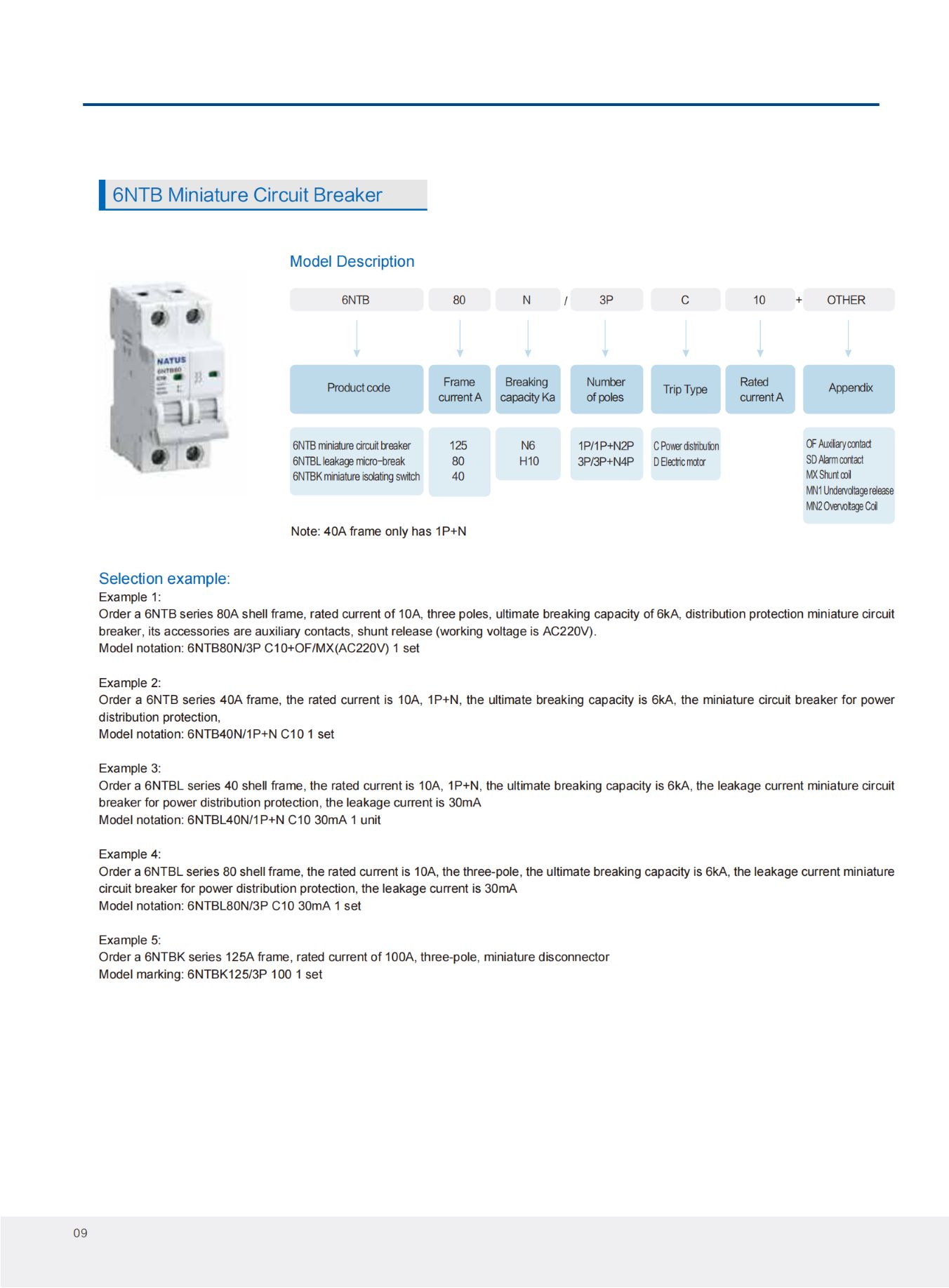

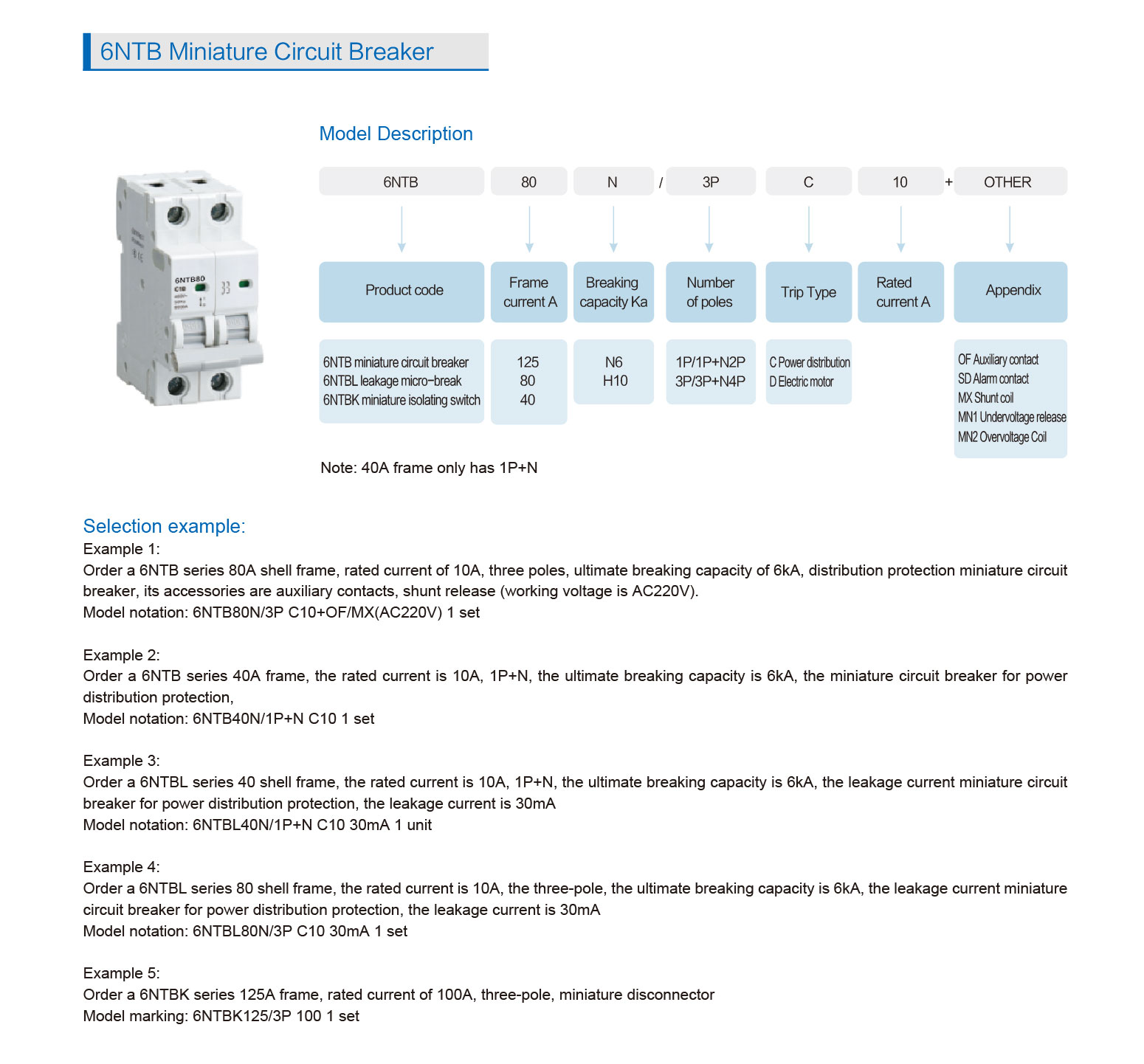

6NTB Miniature Circuit Breaker
Micro Circuit Breaker Series is a widely used terminal protection device in electrical terminal distribution systems. It is suitable for circuits with alternating current of 50/60Hz, rated voltage of 230/400V and rated current up to 125A, mainly used for overload and short-circuit protection, and also can serve as non-frequent operation conversion for circuits under normal conditions, which is extensively applied in industrial facilities, commercial buildings, high-rise structures and residential premises. Its structure consists of a contact system, an arc extinguishing device, an operating mechanism and a housing. The contacts and current-carrying components of the contact system are mostly made of electrolytic copper or silver alloy; the arc extinguishing device absorbs and cools electric arcs through metal arc-separating plates to achieve arc extinction; the operating mechanism is equipped with a solenoid magnetic release device and a bimetallic thermal release device; the housing is molded from thermoplastic insulating materials with excellent mechanical, heat-insulating and insulating properties.

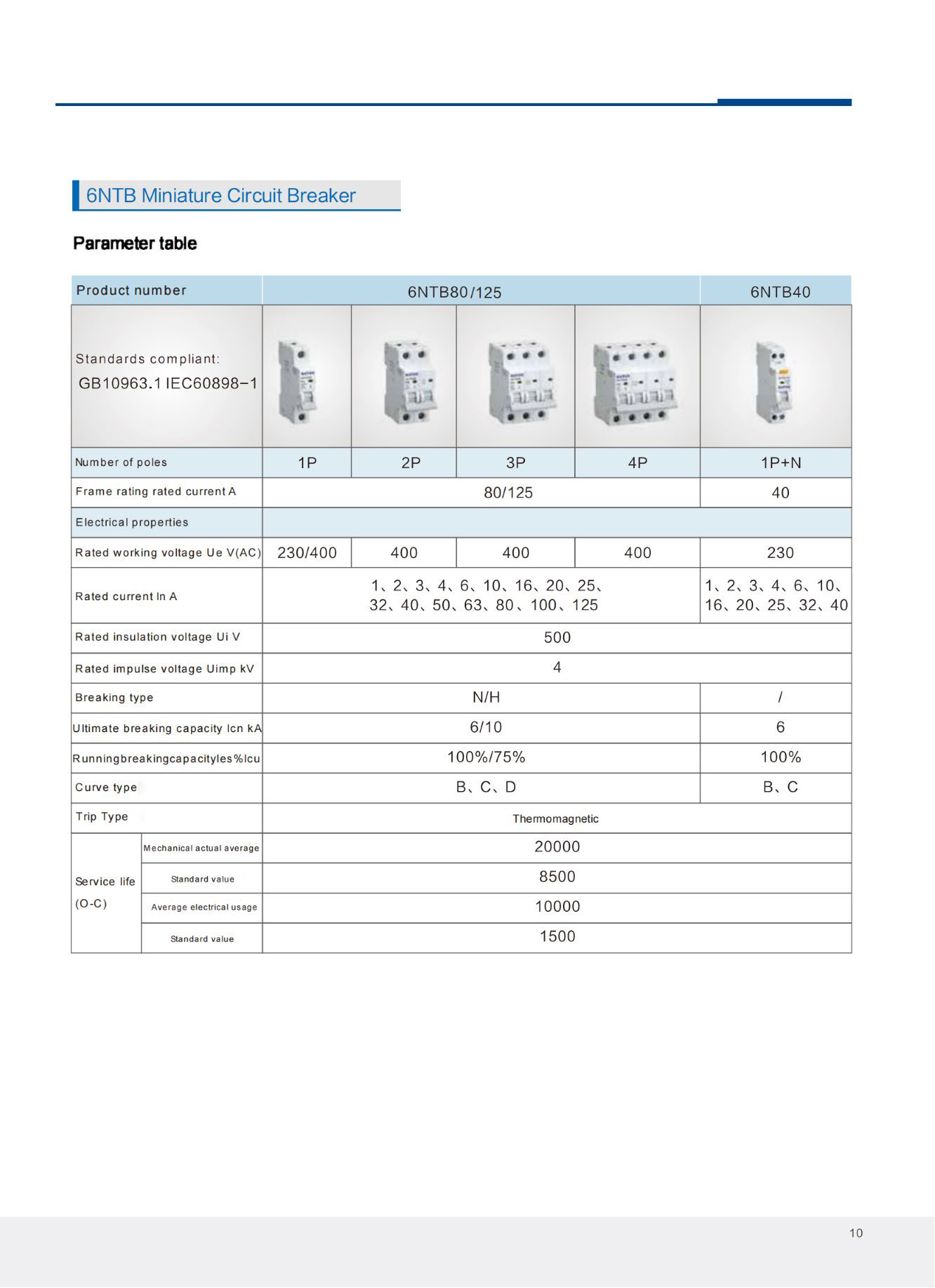

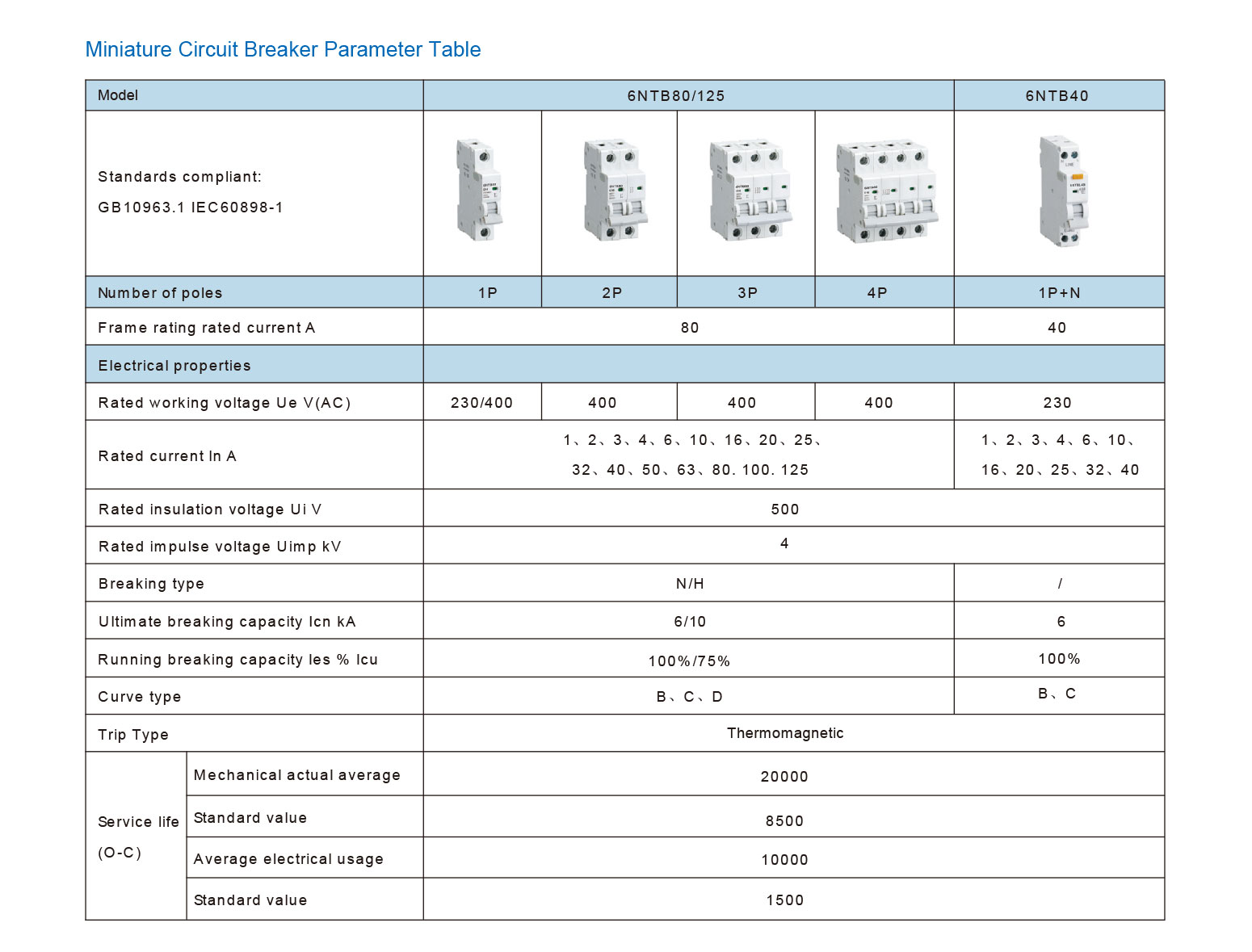

Rated Voltage: 400 V AC
Rated Current: 1 A, 2 A, 3 A, 4 A, 6 A, 10 A, 16 A, 20 A, 25 A, 32 A, 40 A, 50 A, 63 A, 80 A, 100 A, 125 A
Rated Ultimate Short-Circuit Breaking Capacity: 6 kA (N) / 10 kA (H)
Pole Number: 2P
Trip Curve Type: Type B / Type C / Type D
